AGRICULTURAL MACHINERY

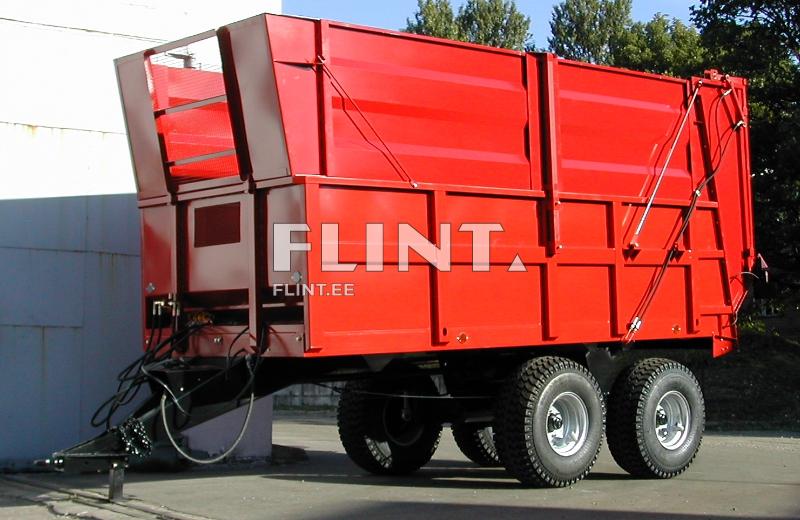

Manure spreader PTU-10A (10t, 13 m3)
Technical information

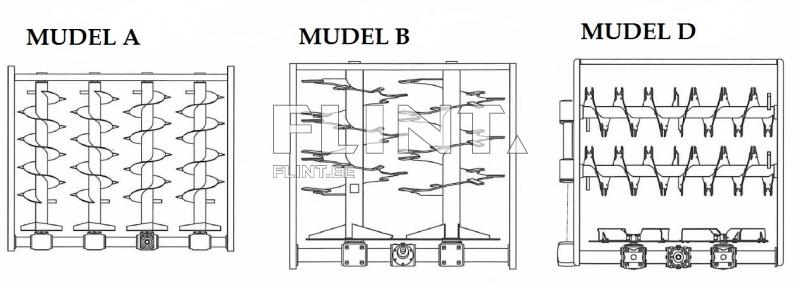

Manure spreader PTU-10A with 10 t lifting capacity . Manure spreader equipped with the conveyor hydraulic drive controlled from tractor's cab. Every model is made all-metal, thus ensuring high durability of the construction The spreading device with four vertical drums ensures high quality of crushing, uniformity of fertilizers application in the whole width of spreading. Can be transformed into high-capacity (25m3) trailer for haylage and green mass carriage. Previous title PTU-6.0/14A.| Model | PTU 10A |
| Load-carrying capacity (ton) | 10 |
| Volume of load to be carried (m³) | 13 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 6-8 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1375 |
| Main body sides (mm) | 2420 |
| Weight with spreading device (kg) | 2685 |
| Dimensions | |
| Length (mm) | 6635 |
| Width (mm) | 2380 |
| Height with spreading device (mm) | 2685 |
| Tyre size | 500/50-17; 550/45-22.5 |
| Track (mm) | 1900 |
| Brakes | 300x60 |
| Brakes drive | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 540 |
| To be attached to tractors with power (kW) | 70-80 |
