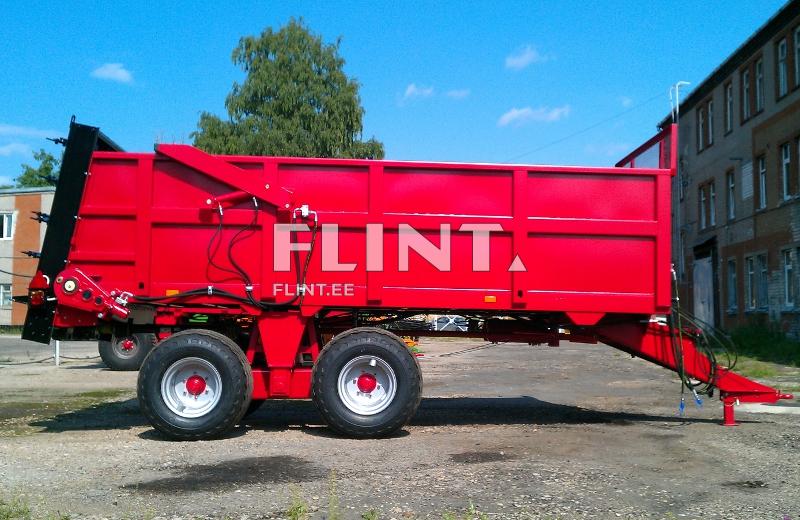

Manure spreader PTU 10B (10t, 13 m3)
Technical information

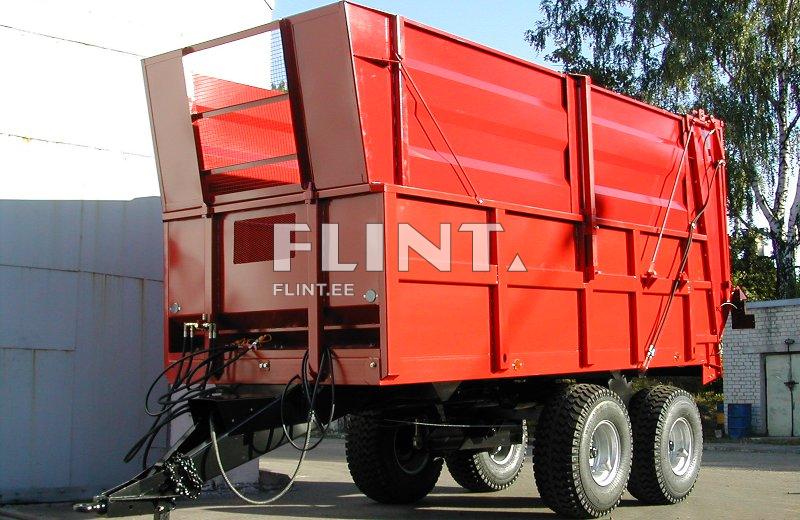

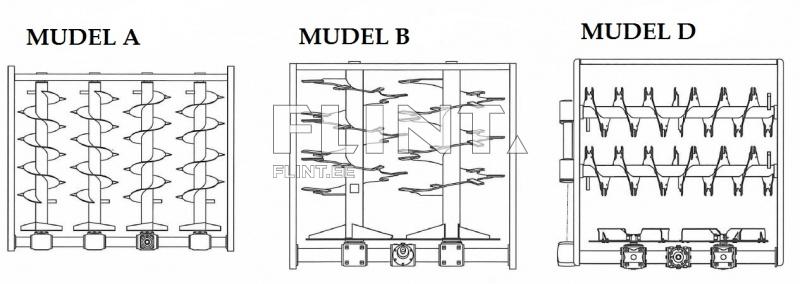

The solid organic manure spreader PTU-10B is a modification of the machine PTU-10A. The two-rotor spreading device with vertical disposition of rotors is mounted on the machine. The two-rotor spreading device provides the better crushing of fertilizers, the greater width of spreading and better uniformity of fertilizer spreading owing to disk plates with the diameter 900 mm and blades with height 100 mm which are mounted on the lower part of the rotors. By its technical qualities such a spreading device featuring higher reliability and longevity is more powerful than the usual four-rotor spreading device. This machine has stood the test in Germany with DLG. The results of the testing could be seen in the table below. Can be transformed into high-capacity (25m3) trailer for haylage and green mass carriage. Previous title PTU-6.0/14B.| Model | PTU 10B |
| Load-carrying capacity (ton) | 10 |
| Volume of load to be carried (m³) | 13 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 12-14 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1375 |
| Main body sides (mm) | 2420 |
| Weight with spreading device (kg) | 3000 |
| Dimensions | |
| Length (mm) | 6688 |
| Width (mm) | 2380 |
| Height with spreading device (mm) | 2685 |
| Tyre size | 500/50-17; 550/45-22.5 |
| Track (mm) | 1900 |
| Brakes | 300x60 |
| Brakes drive | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 540 |
| To be attached to tractors with power (kW) | 90-100 |
