AGRICULTURAL MACHINERY

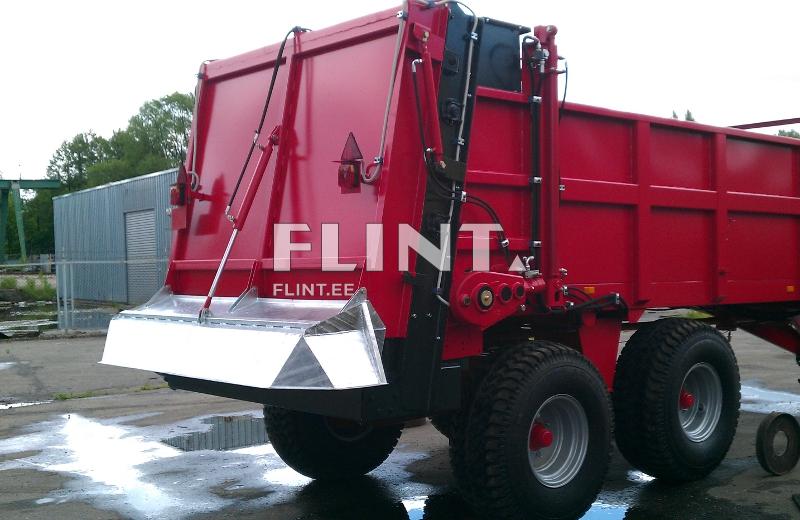

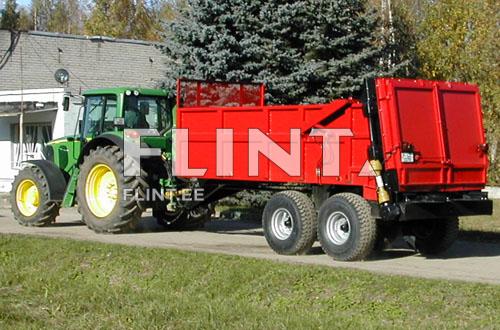

Manure spreader PTU 10D (10t, 12 m3)
Technical information

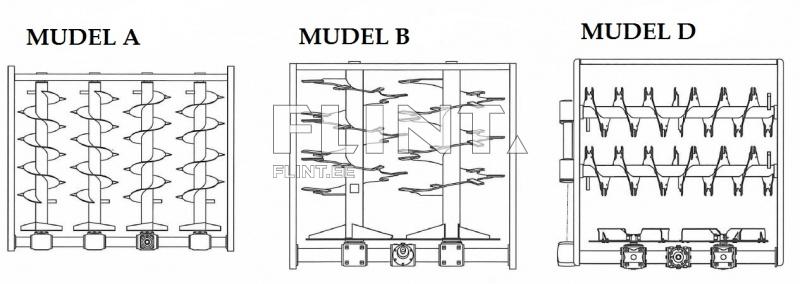

The manure spreader is equipped with disk spreading device consisting of 2 horizontal crushing drums and 2 spreading disks secured on table. The disk spreading device ensures a higher quality of crush and uniform spreading of solid organic fertilizers all over the spreading width. On the machine are mounted hydraulic drive of conveyor with adjustable speed and hydraulically operated tailgate. Can be transformed into high-capacity (25m3) trailer for haylage and green mass carriage. Previous title PTU-6.0/14D.| Model | PTU 10D |
| Load-carrying capacity (ton) | 10 |
| Volume of load to be carried (m³) | 13 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 14-20 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1375 |
| Main body sides (mm) | 2420 |
| Weight with spreading device (kg) | 3350 |
| Dimensions | |
| Length (mm) | 7350 |
| Width (mm) | 2350 |
| Height with spreading device (mm) | 2850 |
| Tyre size | 500/50-17; 550/45-22.5 |
| Track (mm) | 1900 |
| Brakes | 300x60 |
| Brakes drive | pneumatic or hydraulic |
| Hydraulic tailgate | yes |

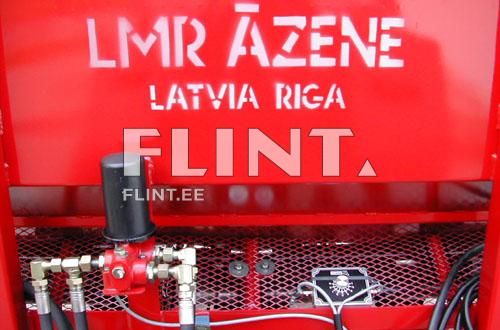

| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 1000 |
| To be attached to tractors with power (kW) | 110-120 |
