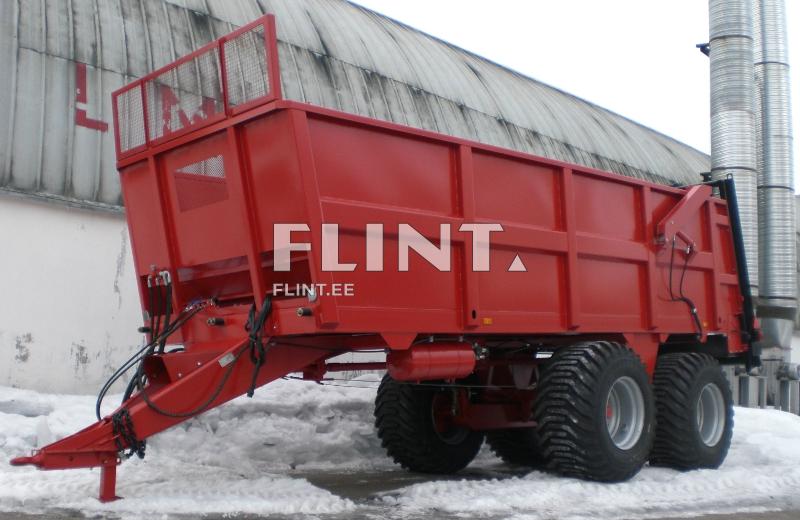

Manure spreader PTU 14B (14t, 17 m3)
Technical information
The solid organic manure spreader PTU-14B with lifting capacity of 14 tons is equipped with 2 vertical rotor spreading device, ensuring high quality and high speed of fertilizer crushing and uniformity of application in the whole area of spreading. The spreader has hydraulic conveyor drive with adjustable speed and hydraulic tailgate. The body is all-welded metal to improve the durability of the construction. Can be transformed into high-capacity (30m3) trailer for haylage and green mass carriage.| Load carrying capacity (t) | 14 |
| Spreading width (m) | 12-14 |
| Capacity (m³) | 17 |
| Working speed (km/h) | 6-14 |
| Transport speed (km/h) | 30 |
| Tractor output (HP) | 140-160 |
| Brakes | Hyraulic or pneumatic |
| Conveyor drive | Hydraulic: reduction gear |
| Length (mm) | 7970 |
| Width (mm) | 2500 |
| Height with spreading mechanism (mm) | 3100 |
| Tires | 600/50-22,5 |
| Output revolutions of tractor (rpm) | 1000 |
| Weight with spreading mechanism (kg) | 4650 |
