Manure spreader PTU 14D (14t, 17 m3)
Technical information

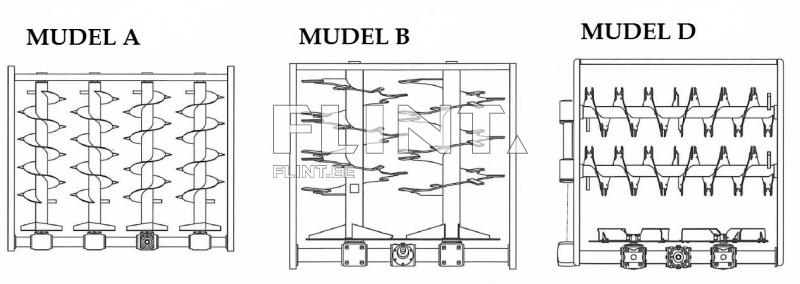

The manure spreader PTU-14D is equipped with a spreading device with 2 horizontal augers and 2 lower discs.This type of a spreading device ensures the high quality of crushing and the largest width of spreading which allows to use the machine not only as a classical spreader, but also for fertilizing of meadows and young growth. The spreader PTU-14D has following improvements:- spring bogie allowing to improve considerably the smoothness of movement of the machine by speed 40 km/h;
- drawbar with rubber damper, reducing the towing eye wear;
- system of automatic tightening of conveyor chains;
- automatic block system of conveyor by closed tailgate;

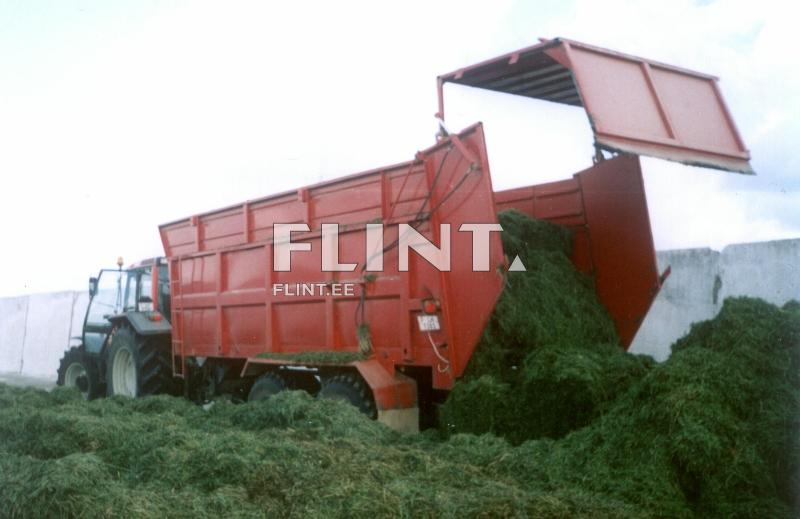

Can be transformed into high-capacity (30m3) trailer for haylage and green mass carriage.
| Model | PTU 14D |
| Load-carrying capacity (ton) | 14 |
| Volume of load to be carried (m³) | 17 |
| Maximum speed (km/h) | 30/40 |
| Spreading width (m) | 14-20 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1465 |
| Main body sides (mm) | 2700 |
| Weight with spreading device (kg) | 4800 |
| Dimensions | |
| Length (mm) | 8000 |
| Width (mm) | 2500 |
| Height with spreading device (mm) | 3100 |
| Tyre size | 600/50-22.5 |
| Track (mm) | 1900 |
| Brakes | 350x60 |
| Brakes drive | pneumatic or hydraulic |

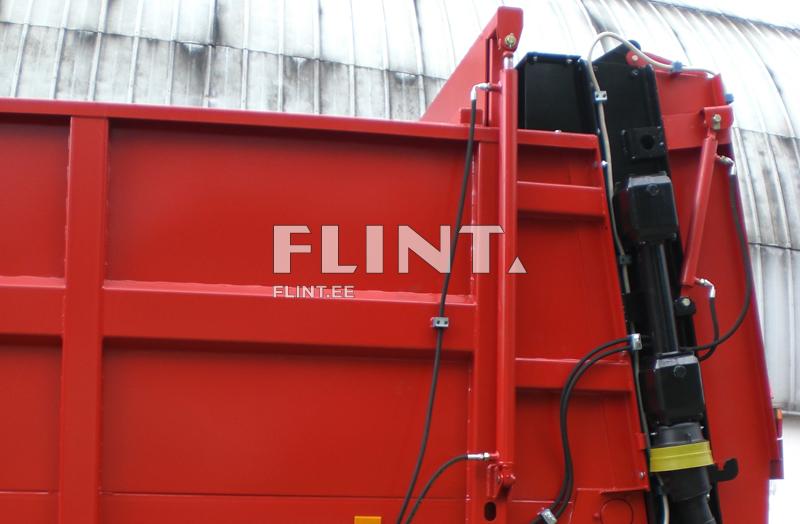

| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 1000 |
| To be attached to tractors with power (kW) | 160-180 |
