AGRICULTURAL MACHINERY

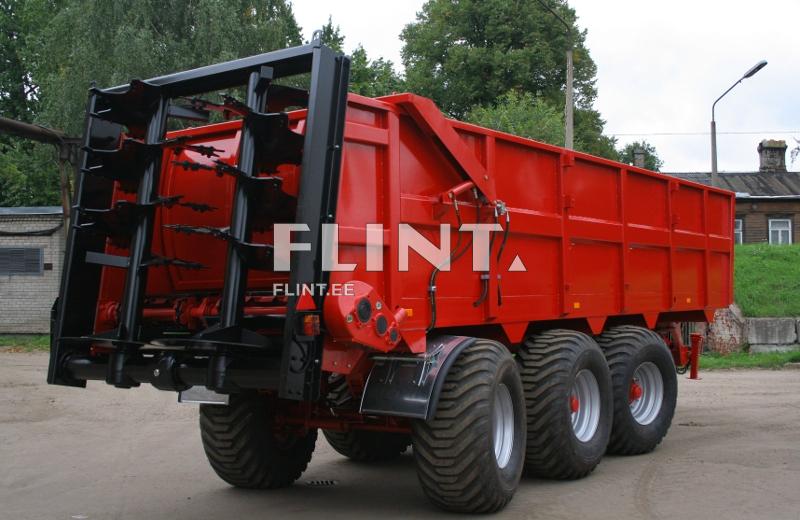

Manure spreader PTU 20B (20t, 24m3)
Technical information
The manure spreader with lifting capacity 20 tons is designed for fertilizing fields by solid manure. The machine is equipped by tridem wheel suspension with two steering axles for better maneuverability and less pressure on soil. The machine is designed for large farms and companies-contractors rendering services in treatment and fertilization of fields by contract. Can be transformed into high-capacity (40m3) trailer for haylage and green mass carriage.| Model | PTU 20B |
| Load-carrying capacity (ton) | 20 |
| Volume of load to be carried (m³) | 24 |
| Maximum speed (km/h) | 40 |
| Spreading width (m) | 12-14 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1540 |
| Main body sides (mm) | 2780 |
| Weight with spreading device (kg) | 7300 |
| Dimensions | |
| Length (mm) | 9970 |
| Width (mm) | 2550 |
| Height with spreading device (mm) | 3180 |
| Tyre size | 600/50-22.5; 700/40-22.5 |
| Track (mm) | 1950 |
| Brakes | 406x120 |
| Brake drives | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 1000 |
