AGRICULTURAL MACHINERY

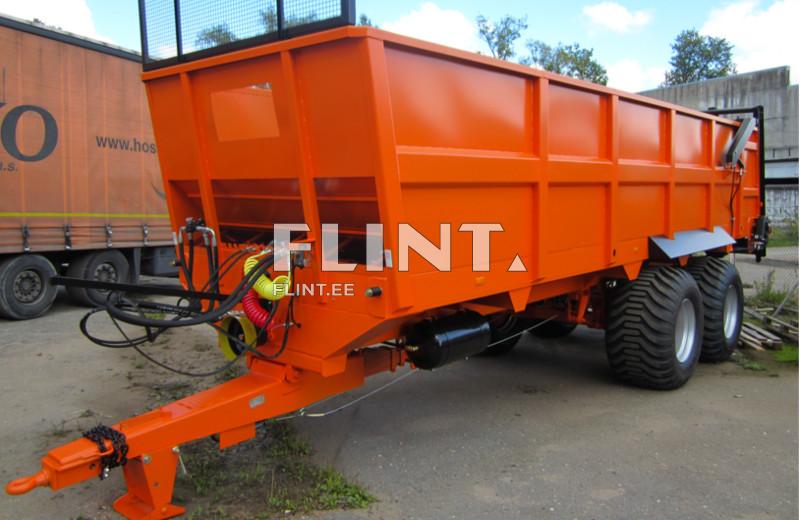

Manure spreader PTU 20BL (20t, 22 m3)
Technical information

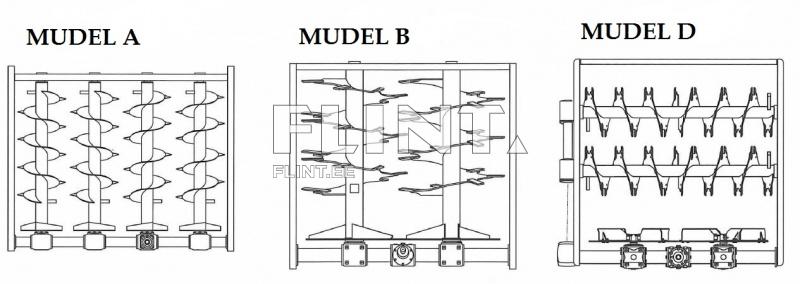

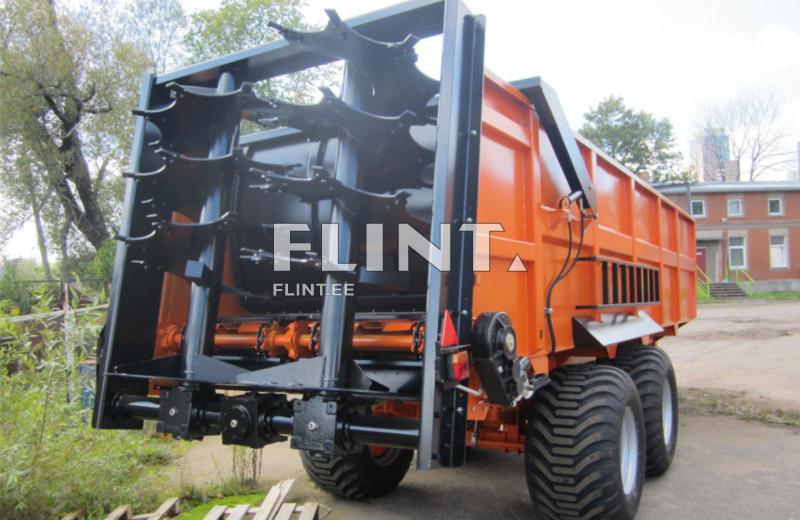

The manure Spreader PTU-20BL with lifting capacity 20 tons is designed for large farms or companies working by contracts. The machine is equipped either by 2 vertical rotor spreading device or by disk spreading device. The effective use of advantages of each type of spreading device allows the approach to solving problems with greater flexibility. The machine can be re-equipped into a semitrailer for hauling greenery(35m3). The set for re-equipping is supplied by manufacturer by request and can be easily mounted on the machine.Model | PTU 20BL |
Load-carrying capacity (ton) | 20 |
Volume of load to be carried (m³) | 22 |
Maximum speed (km/h) | 40 |
Spreading width (m) | 12-14 |
Operating speed (km/h) | 6-12 |
Loading height, according to (mm) | |
Platform floor (mm) | 1520 |
Main body sides (mm) | 2720 |
Weight with spreading device (kg) | 7100 |
Dimensions | |
Length (mm) | 9555 |
Width (mm) | 2550 |
Height with spreading device (mm) | 3260 |
Tyre size | 600/50-22.5 or 700/40-22.5 |
Track (mm) | 1950 |
Output revolutions of tractor (rpm) | 1000 |
