AGRICULTURAL MACHINERY

Manure spreader PTU 20D (20t, 24 m3)
Technical information

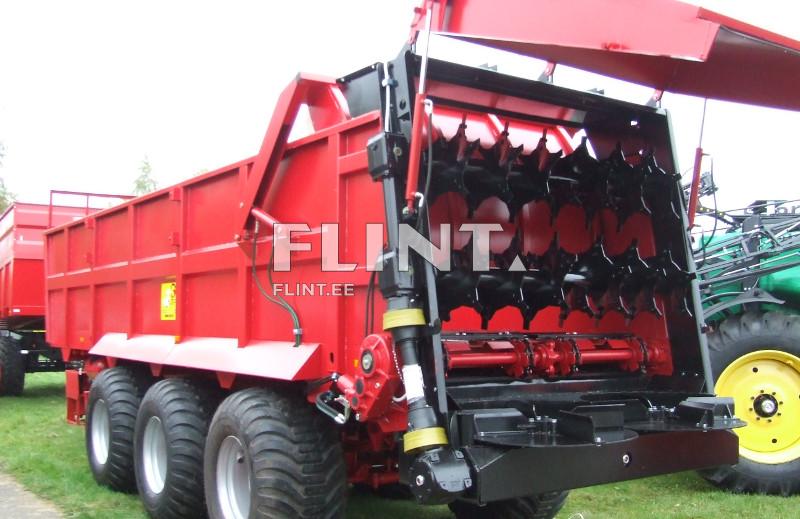

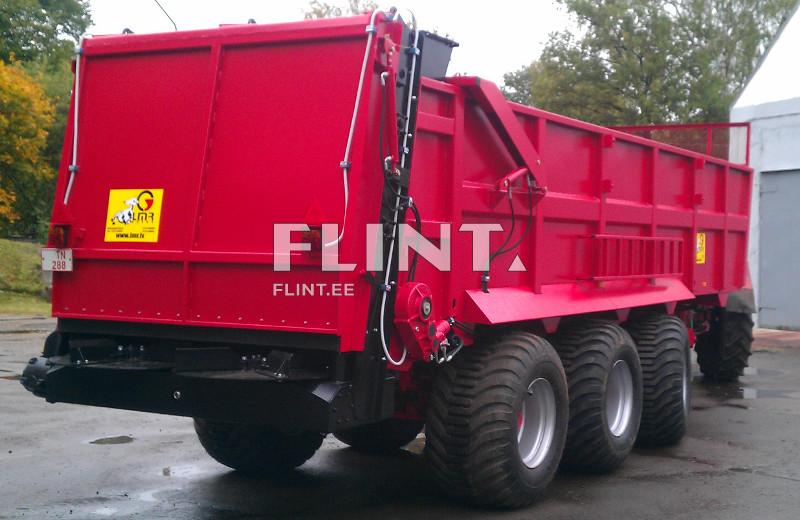

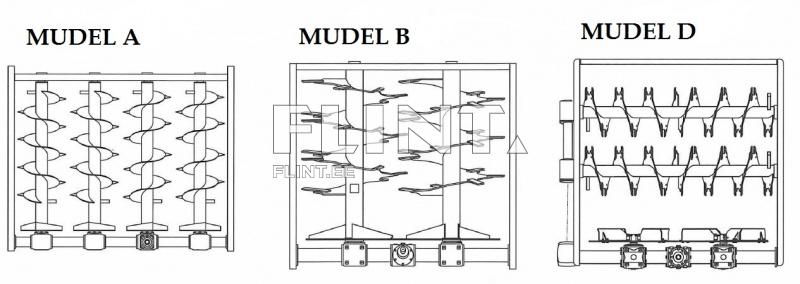

The PTU-20D spreader is equipped with a tailgate. Behind the hatches are two horizontal shredders and below them are two large spreader plates. The spreader has first-class manure crushing properties, ensures a very fine and even spread. The trailer is equipped with three bridges, two of which are rotating. All bridges are equipped with suspension.Model | PTU 20D |
Load-carrying capacity (ton) | 20 |
Volume of load to be carried (m³) | 24 |
Maximum speed (km/h) | 40 |
Spreading width (m) | 16-20 |
Operating speed (km/h) | 6-12 |
Loading height, according to (mm) | |
Platform floor (mm) | 1540 |
Main body sides (mm) | 2780 |
Weight with spreading device (kg) | 7500 |
Dimensions | |
Length (mm) | 9970 |
Width (mm) | 2550 |
Height with spreading device (mm) | 3180 |
Tyre size | 600/50-22.5; 700/40-22.5 |
Track (mm) | 1950 |
Brakes | 406x120 |
Brake drives | pneumatic or hydraulic |
Output revolutions of tractor (rpm) | 1000 |
