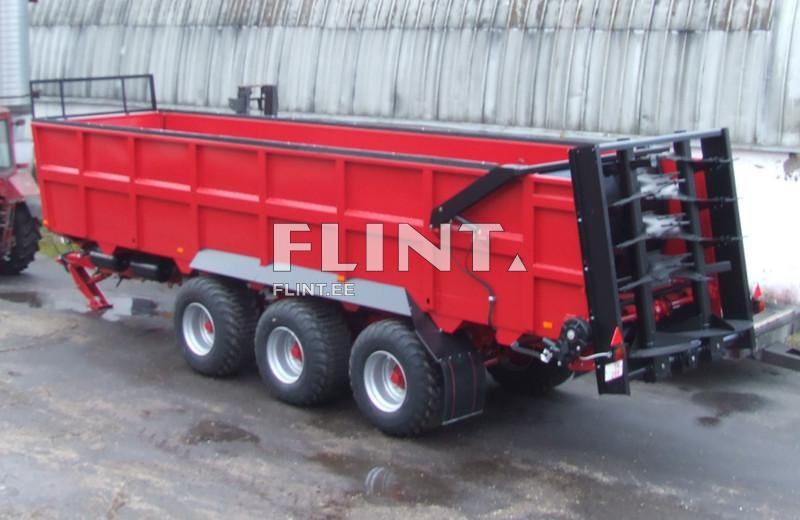

Manure spreader PTU-22B (22t, 26m3)
Technical information
The trailer is equipped with three bridges, two of which are rotating. All bridges are equipped with suspension.This manure spreader is intended for use primarily in large farms and service companies.

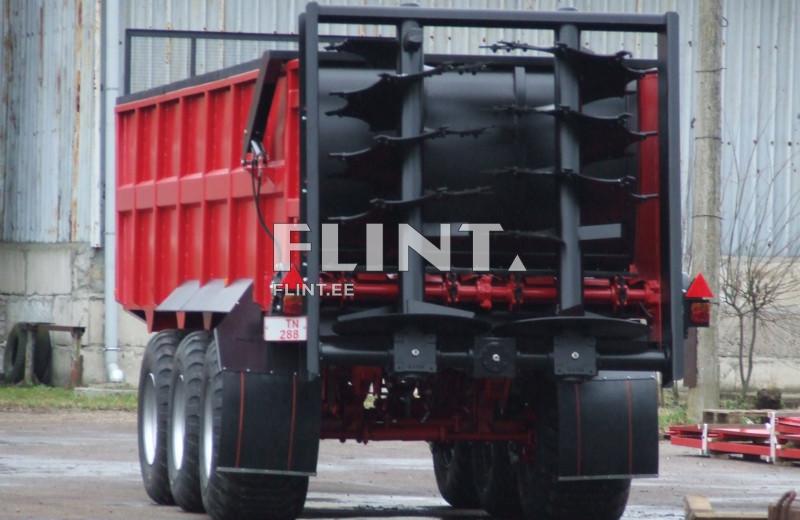

Two powerful reels and plates ensure even greater efficiency. The bottom conveyor has a hydraulic drive, the speed of which can be changed, there is a hydraulically opening hatch before the hoist that prevents the cargo from falling.
| Model | PTU 20B |
| Load-carrying capacity (ton) | 22 |
| Volume of load to be carried (m³) | 26 |
| Maximum speed (km/h) | 40 |
| Spreading width (m) | 12-14 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1500 |
| Main body sides (mm) | 2720 |
| Weight with spreading device (kg) | 9100 |
| Dimensions | |
| Length (mm) | 11200 |
| Width (mm) | 2550 |
| Height with spreading device (mm) | 3250 |
| Tyre size | 600/50-22.5; 700/40-22.5 |
| Track (mm) | 1950 |
| Brakes | 406x120 |
| Brake drives | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 1000 |
