Manure spreader PTU-22S (22t, 50m3)
Technical information

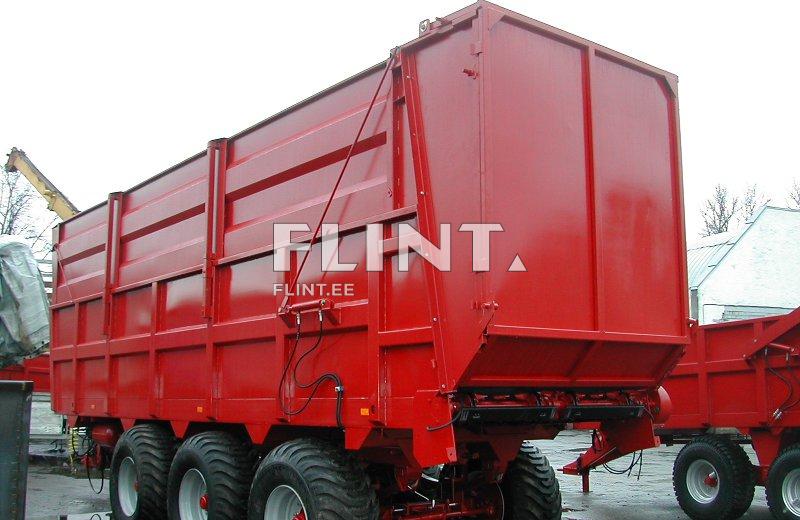

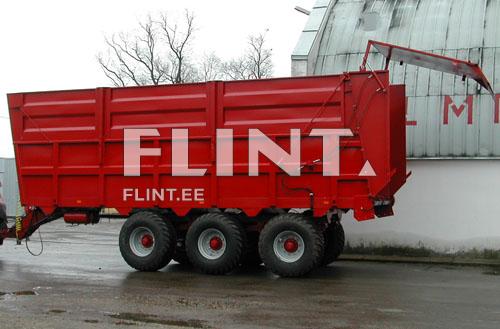

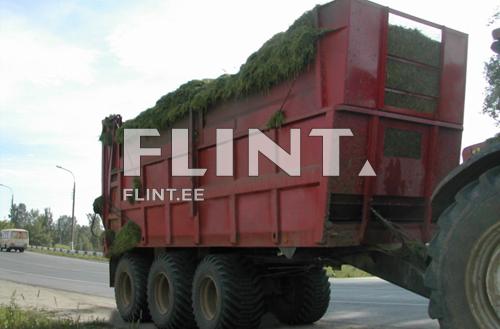

The Universal Semitrailer with gross weight 30 tons is designed for transportation of greenery and other agricultural loads . The machine is equipped by tridem wheel suspension with two steering axles for better maneuverability and less pressure on soil. The hydraulic tailgate, spreading device and intermediate cardan shaft are removed from the spreader PTU-22. Supplementary body sides are mounted. The hydraulic equipment of the tailgate is used for operations with the tailgate by transporting silage.The machine is designed for large farms and companies-contractors rendering services in treatment of fields by contract
Model | PTU 22S |
Load-carrying capacity (ton) | 22 |
Volume of load to be carried (m³) | 50 |
Maximum speed (km/h) | 40 |
Spreading width (m) | 12-14 |
Operating speed (km/h) | 6-12 |
Loading height, according to (mm) | |
Platform floor (mm) | 1500 |
Weight with spreading device (kg) | 8600 |
Dimensions | |
Length (mm) | 11100 |
Width (mm) | 2550 |
Height with spreading device (mm) | 3940 |
Tyre size | 600/50-22.5; 700/40-22.5 |
Track (mm) | 1950 |
Brakes | 406x120 |
Brake drives | pneumatic or hydraulic |
Hydraulic tailgate | yes |
Conveyor drive | hydraulic: reduction gear |
Output revolutions of tractor (rpm) | 1000 |
