AGRICULTURAL MACHINERY
Manure spreader PTU 5A (5t, 6,5 m3)
Technical information

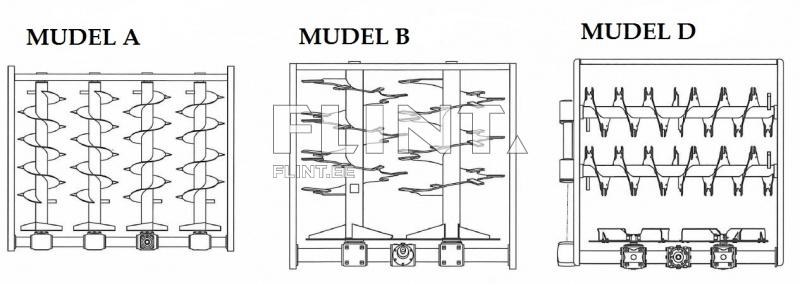

The solid organic manure spreader PTU-5A with 5 t lifting capacity and 6.3 cubic meter body. The four-rotor spreading device with vertical disposition of rotors is mounted on the machine. Previous title PTU-4.0/13A.| Model | PTU 5A |
| Load-carrying capacity (ton) | 5 |
| Volume of load to be carried (m³) | 6,3 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 6-8 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1375 |
| Main body sides (mm) | 2135 |
| Weight with spreading device (kg) | 1900 |
| Dimensions | |
| Length (mm) | 5035 |
| Width (mm) | 2250 |
| Height with spreading device (mm) | 2355 |
| Tyre size | 400/60-15.5 |
| Track (mm) | 1800 |
| Brakes | 300x60 |
| Brake drives | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 540 |
| To be attached to tractors with power (kW) | 45-55 |
