AGRICULTURAL MACHINERY

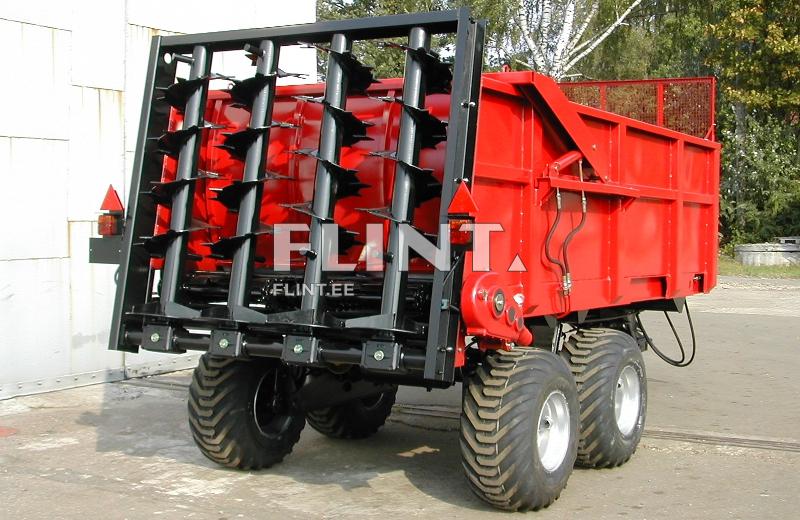

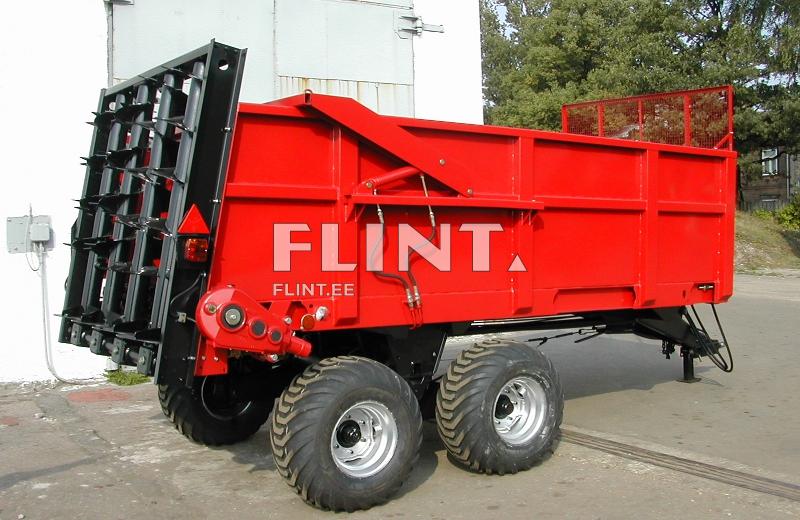

Manure spreader PTU 8A (8t, 7,5 m3)
Technical information

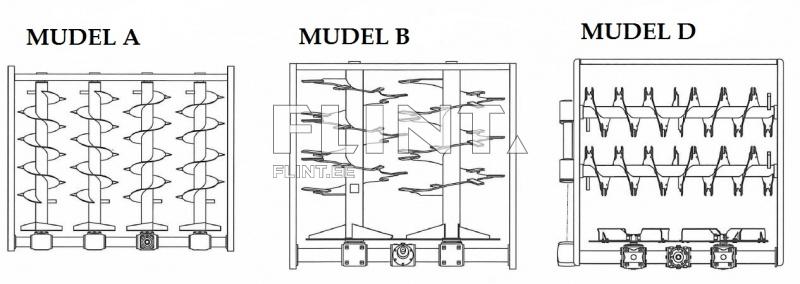

Manure spreader PTU-8A with 8 t lifting capacity. It is equipped with the conveyor hydraulic drive controlled from tractor's cab. Every model is made all-metal, thus ensuring high durability of the construction The spreading device with four vertical drums ensures high quality of crushing, uniformity of fertilizers application in the whole width of spreading. Previous title PTU-6.0/13A.| Model | PTU 8A |
| Load-carrying capacity (ton) | 8 |
| Volume of load to be carried (m³) | 7,5 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 6-8 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1230 |
| Main body sides (mm) | 2230 |
| Weight with spreading device (kg) | 2300 |
| Dimensions | |
| Length (mm) | 5600 |
| Width (mm) | 2250 |
| Height with spreading device (mm) | 2600 |
| Tyre size | 400/60-15.5 |
| Track (mm) | 1800 |
| Brakes | 300x60 |
| Brake drives | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 540 |
| To be attached to tractors with power (kW) | 60-70 |
