AGRICULTURAL MACHINERY

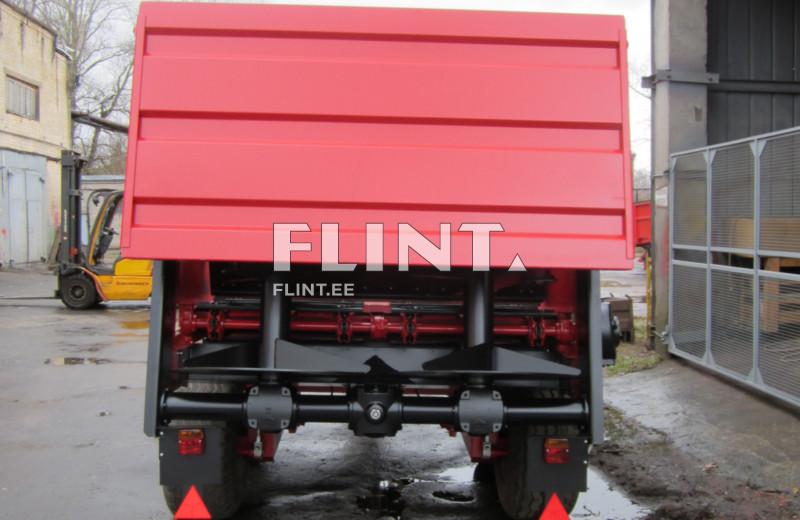

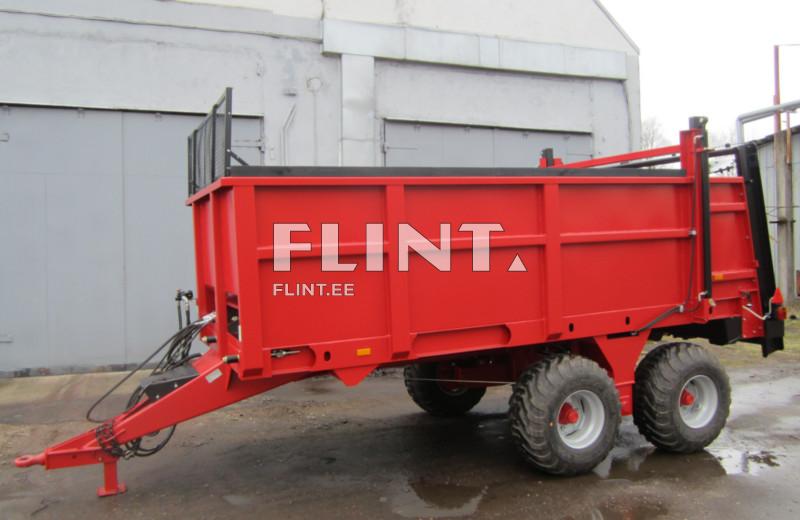

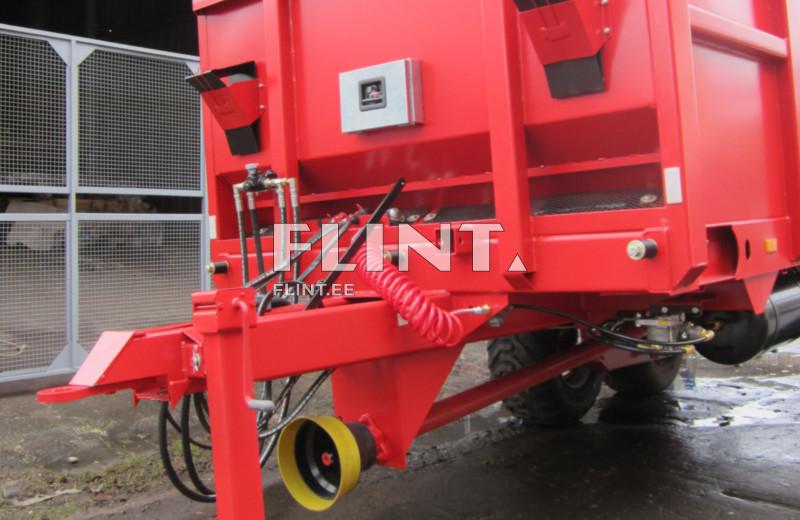

Manure spreader PTU 8B (8t, 7.5m3)
Technical information

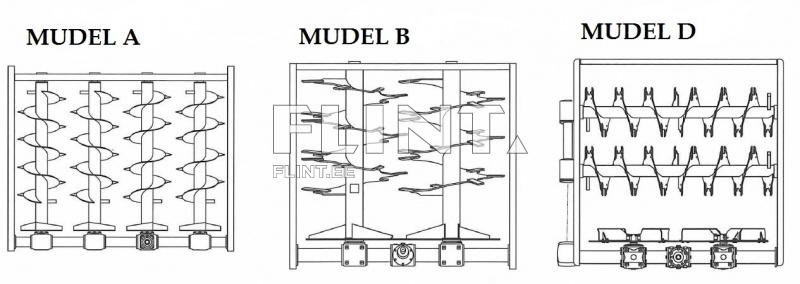

The PTU 8B manure spreader is a modification of the PTU 8A model. The difference between these two models lies in the coils. The PTU 8B model has two larger diameter reels with spreader plates instead of four. In the case of two reels, the advantage is higher performance, the spreading range is significantly larger.| Model | PTU 8B |
| Load-carrying capacity (ton) | 8 |
| Volume of load to be carried (m³) | 7,5 |
| Maximum speed (km/h) | 30 |
| Spreading width (m) | 12-14 |
| Operating speed (km/h) | 6-12 |
| Loading height, according to (mm) | |
| Platform floor (mm) | 1230 |
| Main body sides (mm) | 2250 |
| Weight with spreading device (kg) | 2600 |
| Dimensions | |
| Length (mm) | 6055 |
| Width (mm) | 2250 |
| Height with spreading device (mm) | 2600 |
| Tyre size | 400/60-15.5 |
| Track (mm) | 1800 |
| Brakes | 300x60 |
| Brake drives | pneumatic or hydraulic |
| Hydraulic tailgate | yes |
| Conveyor drive | hydraulic: reduction gear |
| Output revolutions of tractor (rpm) | 540 |
| To be attached to tractors with power (kW) | 80-90 |
