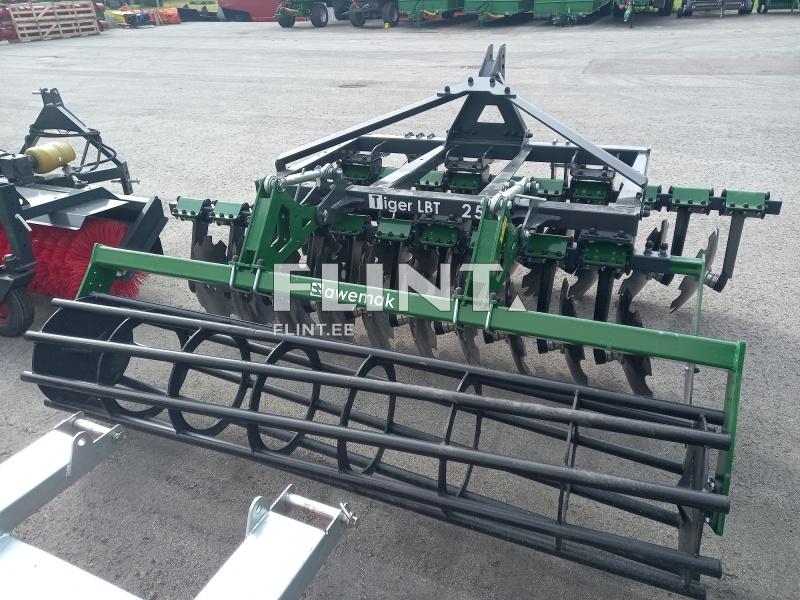

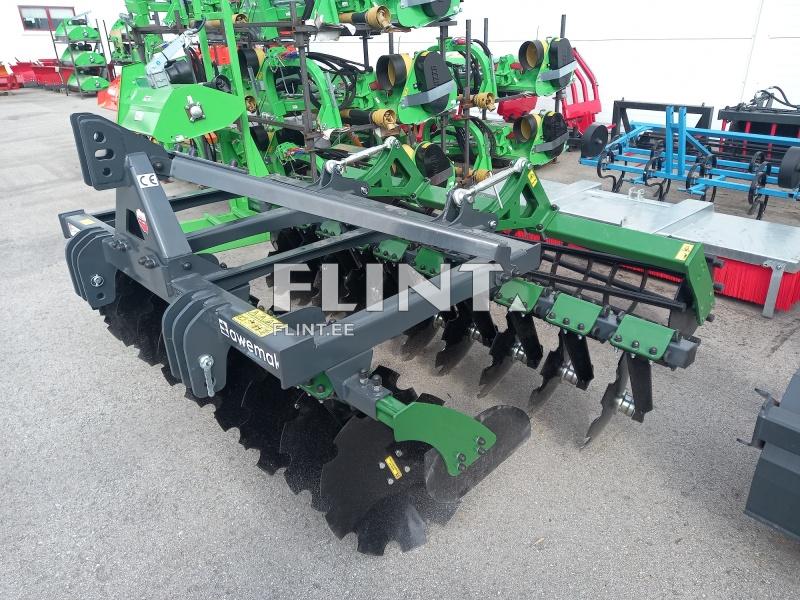

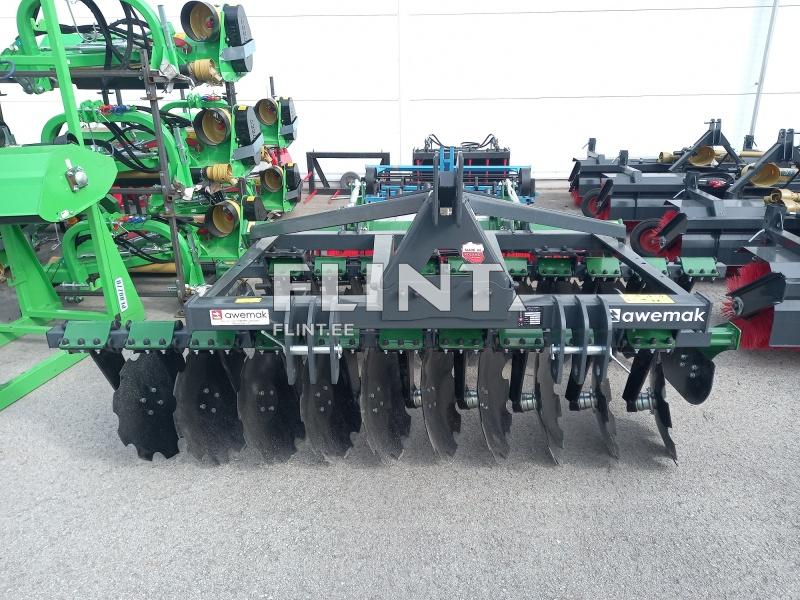

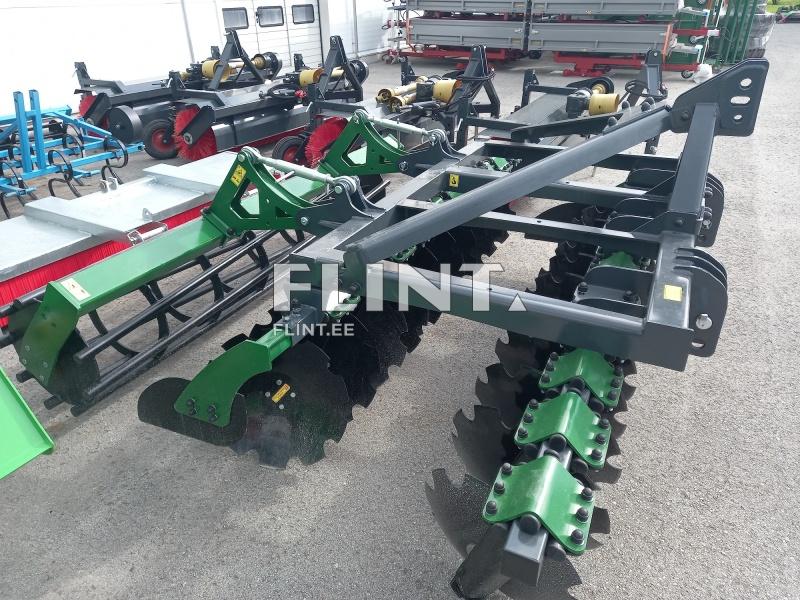

Disc harrow Awemak Tiger LBT
Technical information
Working width 1.8 - 3.0 meters, maintenance-free disc hubs, arm roller, rubber bumpers in the plates, mechanical working depth adjustment.Accessories:
- Hydraulic working depth adjustment
- Led lights
- Different types of rear rollers
- Straw rake in front or behind (with rear roller)
| Model | LBT 18 | LBT 20 | LBT 22 | LBT 25 | LBT 27 | LBT 30 |
| Working width | 1,8 m | 2,0 m | 2,2 m | 2,5 m | 2,7 m | 3,0 m |
| Weight | 800 kg | 850 kg | 900 kg | 950 kg | 1050 kg | 1150 kg |
| number of discs | 14 | 16 | 18 | 20 | 22 | 24 |
| Power needed (hp) | 50-65 | 60-65 | 60-70 | 65-70 | 70-80 | 75-90 |
| Disc diameter (mm) | 560 | 560 | 560 | 560 | 560 | 560 |
