AGRICULTURAL MACHINERY

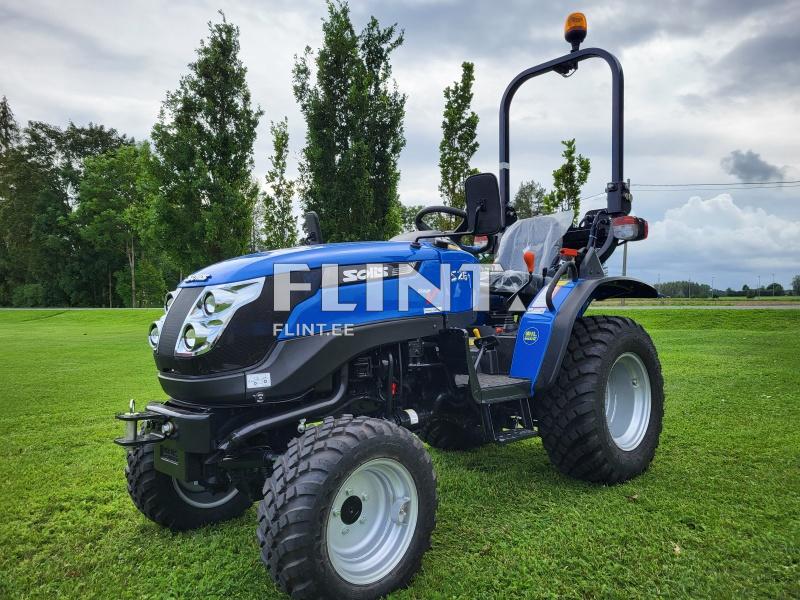

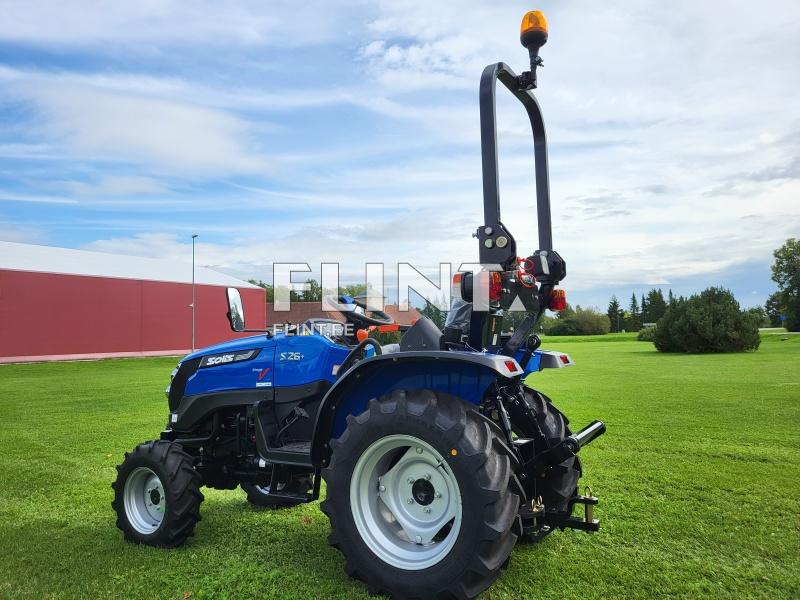

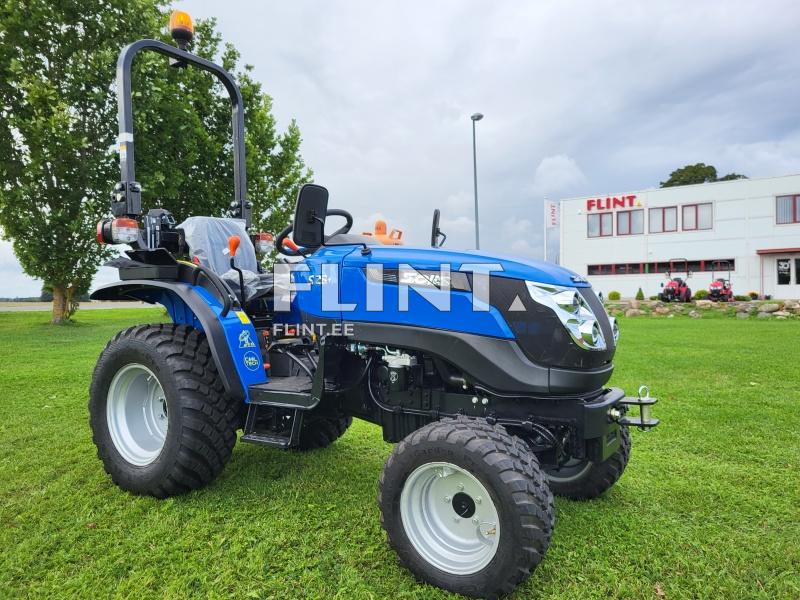

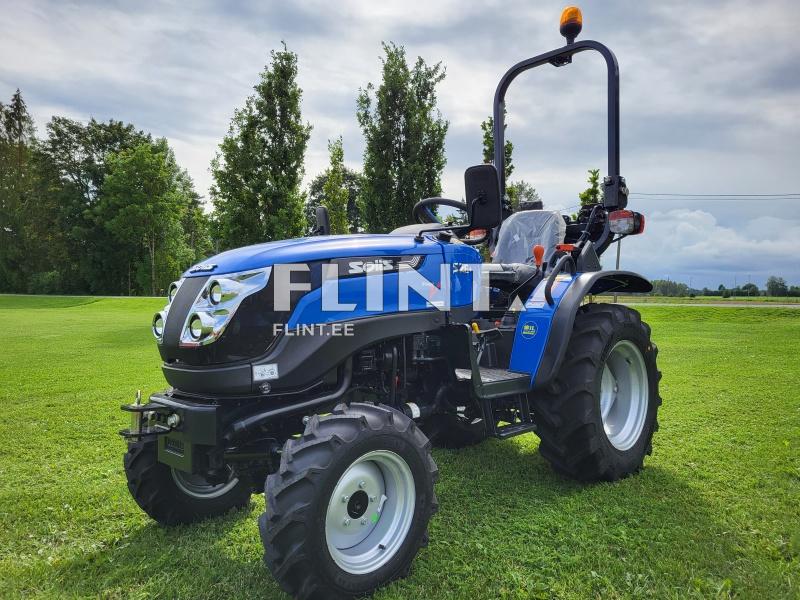

Tractor Solis 26
Technical information
ONE STOP POWERPACK SOLUTION FOR ALL YOUR GARDENING AND FARMING NEEDSWith the overall length similar to any garden tractor, the new Solis 26 is easy to drive and smooth to operate even in tight spaces. Small yet powerful compact Solis 26 is capable of handling wide garden and yard activities such as light material handling, mowing, grass-cutting, gardening and all sorts of municipality applications.
| MODEL | SOLIS 20 |
| Engine | |
| Engine type | Mitsubishi MS3L2.4, water cooled, overhead valve |
| Engine power (HP) | 26 |
| No. of cylinders (pcs) | 3 |
| Aspiration | Naturally aspirated |
| Cubic capacity (cm³) | 1318 |
| Rated RPM (+/-25 mm) | 2700 |
| Air cleaner | dry type |
| Max Torque (p/min/Nm) | 2200/72.2 |
| Transmission | |
| Drive | 4WD |
| Clutch | dsingle clutch |
| Gearbox | Sliding mesh |
| Transmission | 6F+2R |
| Speeds | |
| Min. speed (km/h) | 0.4 |
| Max. speed (km/h) | 17.05 |
| Brakes | |
| Brakes | OIB |
| Parking brakes | yes, latch type |
| Diff lock | |
| Diffri lock | yes |
| PTO | |
| PTO (rpm) | 540/1000 |
| Steering | |
| Steering system | power steering |
| Electrical system | |
| Battery | 12V, 50AH |
| Alternator | 12V, 40A |
| Trailer socket | yes (7 PIN) |
| Hydraulics | |

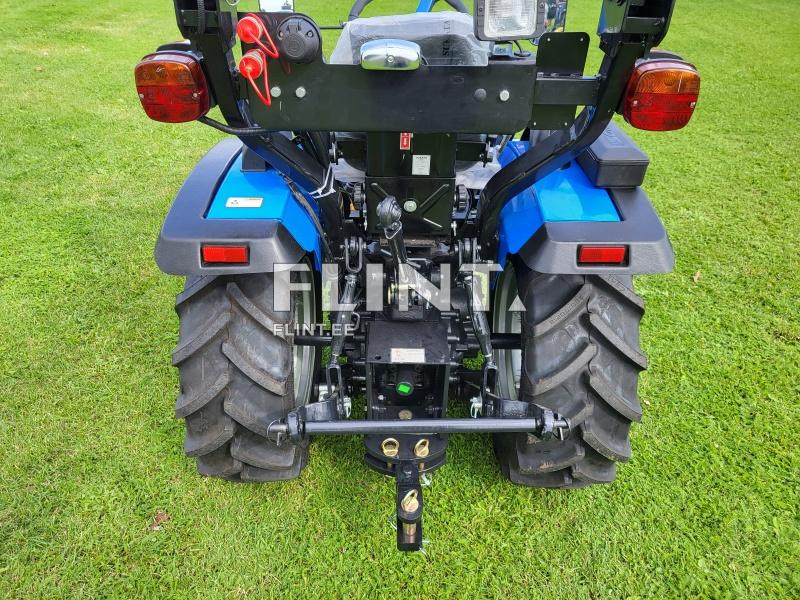

| 3-point linkage | 3-point linkage Cat. II |
| Lifting capacity (kg) | 600 |
| Lift rods | adjustable lift rods |
| Liftomatic | no |
| Fluids capacity | |
| Fuel tank (l) | 30 |
| Engine oil (l) | 4.2 |
| Dimensions | |
| Weight (kg) | 1055 |
| Wheelbase (mm) | 1560 |
| Length (mm) | 2705 |
| Width (mm) | 1058 |
| Height (mm) | 2153 with ROPS |
| Front track (mm) | 894 |
| Rear track (mm) | 825 |
| Other | |
| Fuel indicator gauge | yes |
| Front toe hook | yes |
| Front and rear weights (kg) | front dead weight 30 |
| ROPS | yes, E-marked |
| Trailer hitch | fixed trailer hitch |
| Towbar | yes |
| Tyres | |
| Agricultural tyres | front tyres 6-12; rear tyres 8.3-20 |
| Turf tyres | front tyres 23x8.5-12; rear tyres 33x15.5-16.5 |
| Industrial tyres | front tyres 23x8.5-12; rear tyres 31x15.5-15 |
