AGRICULTURAL MACHINERY

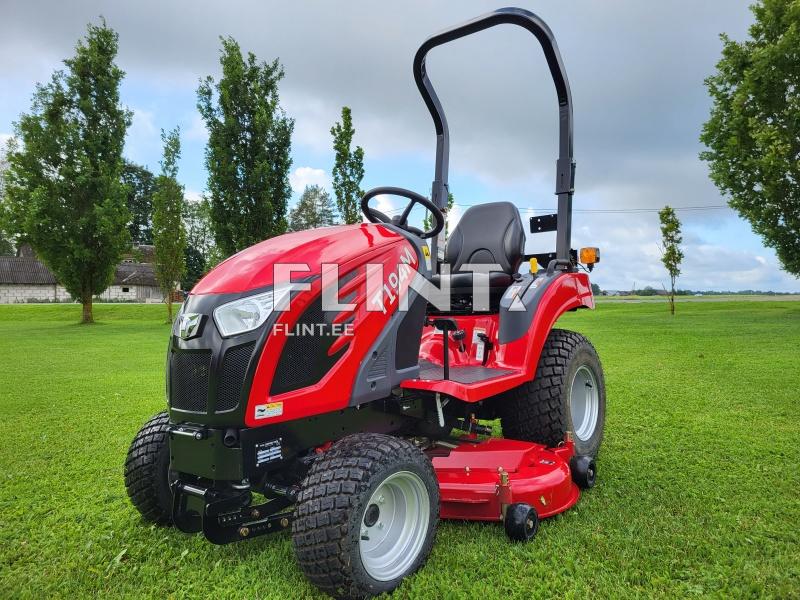

Tractor TYM 194 HST
Technical information

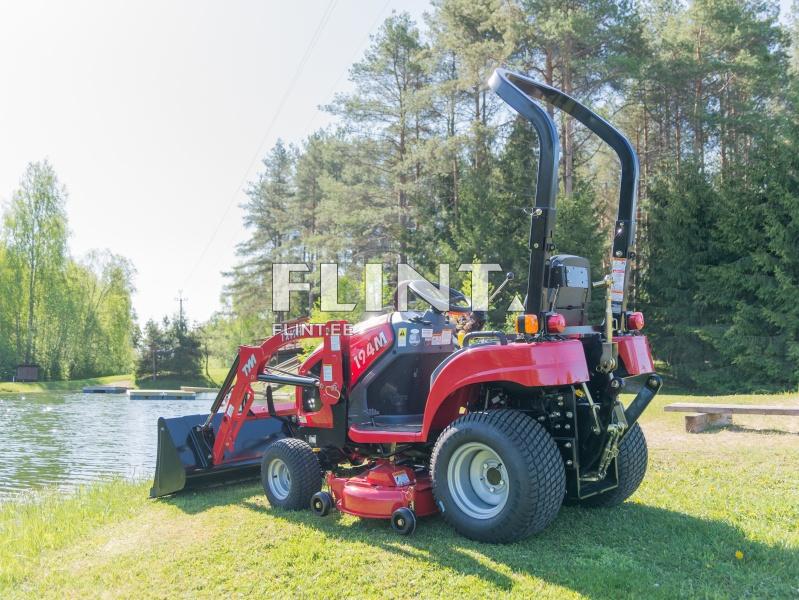

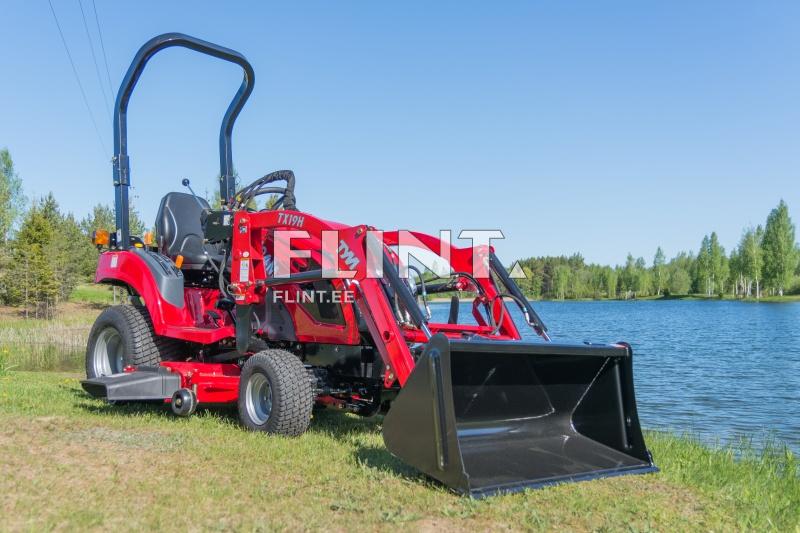

TYM 194 TRACTOR PRICE FROM 8000 €+ VAT, WITH UNDERBODY MOWER PRICE FROM 9100 € + VATFront loader with shovel as an accessory.
Detach the front loader very easy in 5 minutes.
The TYM 194 series tractors are designed and engineered to prove that one machine can cover all your home needs. Thanks to its universal properties, it eliminates the need for several machines and tools. You can use a front loader to transport the material, you can use an underbelly mower to mow the lawn, and you can attach various tools to the rear fences (soil tiller, shredding mower, cleaning brush).
1. front and rear PTO shift lever
2. hydrostatic gearbox
3. seat sensor
4. hand throttle
5. PTO switch
6. the height regulator of the mower
The wide, flat-floor cab offers good visibility and enough legroom, ensuring comfortable work. All controls are within easy reach, including the mower's cutting height adjustment in the underbelly. The gas pedal, brake pedal, differential lock and parking brake are located on the floor of the cabin, located exactly where it is most convenient for you to use them. These features make this tractor easy to use even for novice drivers.
The tractor's fuel tank, located on the right side of the driver's seat, is easy to open with an ergonomically designed screw cap. The tank can be filled with fuel even when the implements are connected to the tractor.
The Japanese-made Yanmar engine offers more torque at lower rpm compared to competitors in its class. Since it is water-cooled, the engine warms up faster and at a more stable temperature while the tractor is running. The engine is also Tier 4 certified, including noise emission standards.
It is possible to install a 140 cm wide mower on the tractor. The cutting height can be easily adjusted during operation using a dial on the control console.
The tractor hood can be opened with one movement. There is very good access to the engine and other systems for maintenance. The side panel can be easily removed without special tools.
| Engine | Yanmar 3TNV74F |
| Engine HP-Gross (HJ/kW) | 19/14,2 |
| Number of cylinders (pcs) | 3 |
| Gearbox | HST |
| Max. speed (km/h) | 12,5 |
| Hitch lift capacity (kg) | 499 |
| PTO Control | Electric/Hydro |
| PTO speed (p/min) | 540 |
| PTO | rear and middle (optional) |
| Front tyres | 16x7,5-8 |
| Rear tyres | 16x12.00-12 |
| Fuel tank (l) | 25 |
| Weight (kg) | 650 |
| Lenght (mm) | 2394 |
| Widith (mm) | 1130 |
| Height with ROPS (mm) | 2200 |
| Wheelbase(mm) | 1350 |
| Colour | red |
