AGRICULTURAL MACHINERY

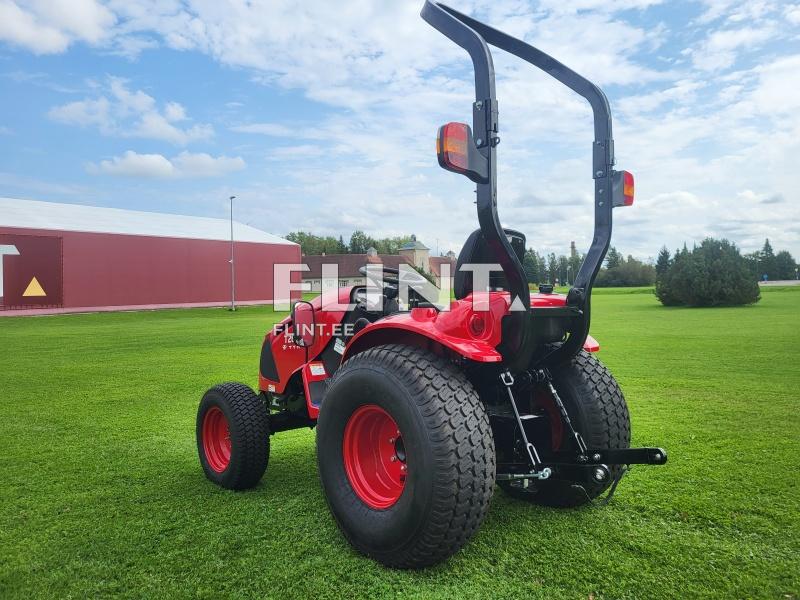

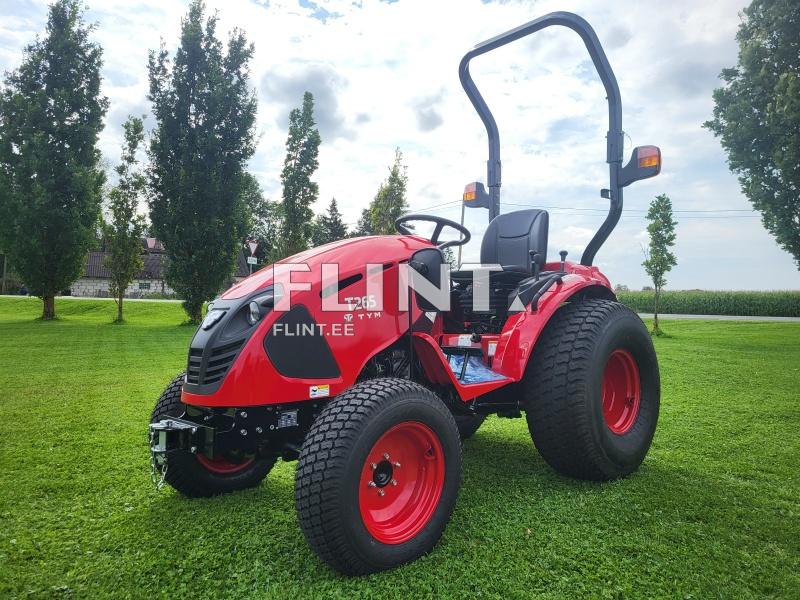

Tractor TYM 265 HST
Technical information
The smallest member of the TYM family, at this time, the T265 is a perfect combination of form and function. Ideally suited for turf care, nursery work and those jobs that you just need a little help with. The T265 can also equip optional turf tires. Designed for use with category I implements the T265 is not just pretty it's pretty impressive!
| MODEL | T 265 HST |
| Engine Manufacturer | Kukje |
| Engine Model | A1100N2 |
| Engine (HP/kW) Gross | 24.1 (18) |
| Minimum Ground clearance ( mm) | 196 |
| Rated engine speed | 2600 |
| Number of cylinders | 3 |
| Air Cleaner | Dual Dry |
| Alternator | 12V/50A |
| Fuel System Type | Indirect Fuel Injection |
| Powertrain | |
| Transmission type | HST |
| Number of Speeds | Infinite / 2 Range |
| Max. Travelling speed (km/h) | 20,8 |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | N/A |
| Hydraulic system | |
| Pump type | Dual Gear Pump |
| Implement pump (l/min) | 16.6 |
| Steering pump (l/min) | 10.4 |
| Max Total flow (l/min) | 27 |
| Category, 3 Point Hitch | 1 |
| Hitch lift capacity (kg) | 700 |
| Lift Control type | Position |
| Joy Stick Valve | Standard |
| No. of standard remote valves-option | 1 |
| PTO | |
| PTO Type | Independent |
| PTO Control | Electric/Hydro |
| PTO Rear (rpm) | 540 |
| PTO Mid as Option (rpm) | 2000 |
| Capacities | |
| Fuel Tank (l) | 25 |
| Dimensions | |
| Overall length (mm) | 2740 |
| Overall width (mm) | 1342 |
| Wheelbase (mm) | 1480 |
| Height to top of ROPS (mm) | 2280 |
| Min. Turn Radius with brakes (mm) | 2502 |
| Total Weight (kg) | 920 |
