AGRICULTURAL MACHINERY
Semitrailer DP-5
Technical information

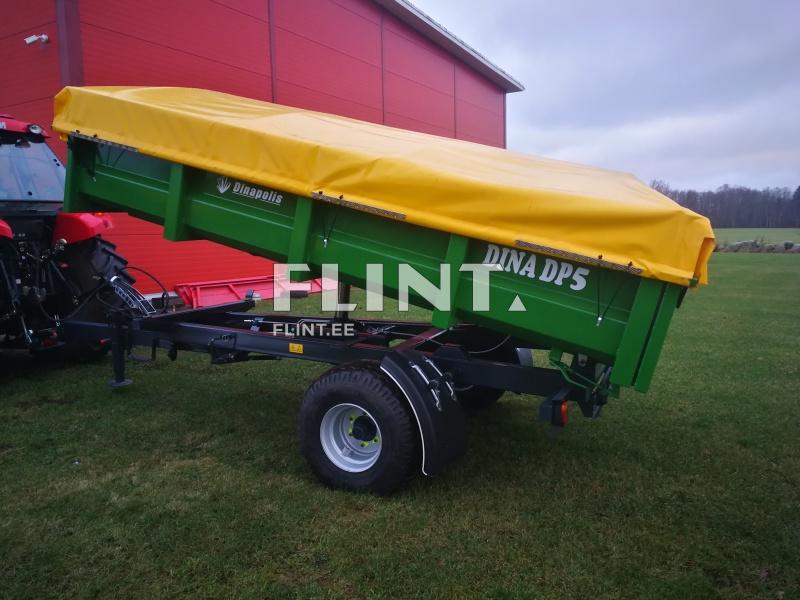

Dinapolis DP-5 is a trailer with a load capacity of 5 t, which can be ordered both with a closed box and with movable ports.
A selection of trailers from 5 tons to 20 tons.

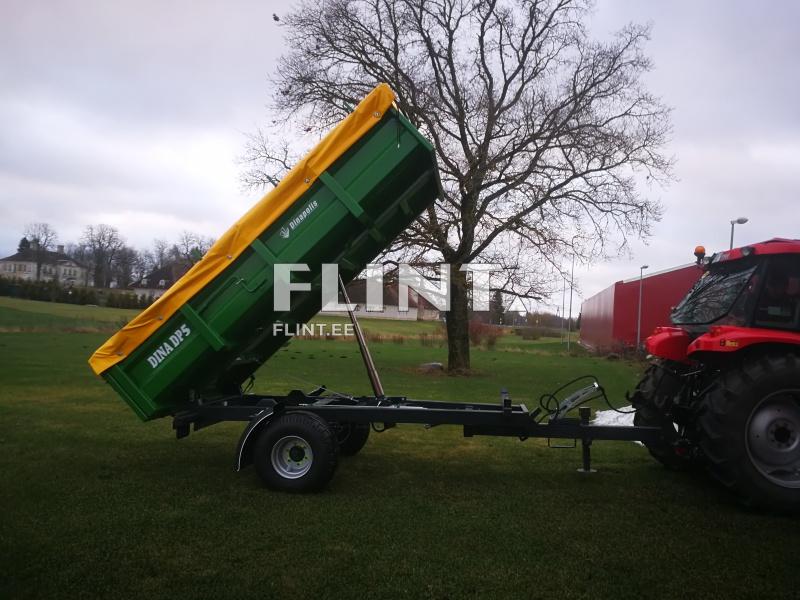

With a backward tilt. Trailers with both hydraulic and air brakes are available.

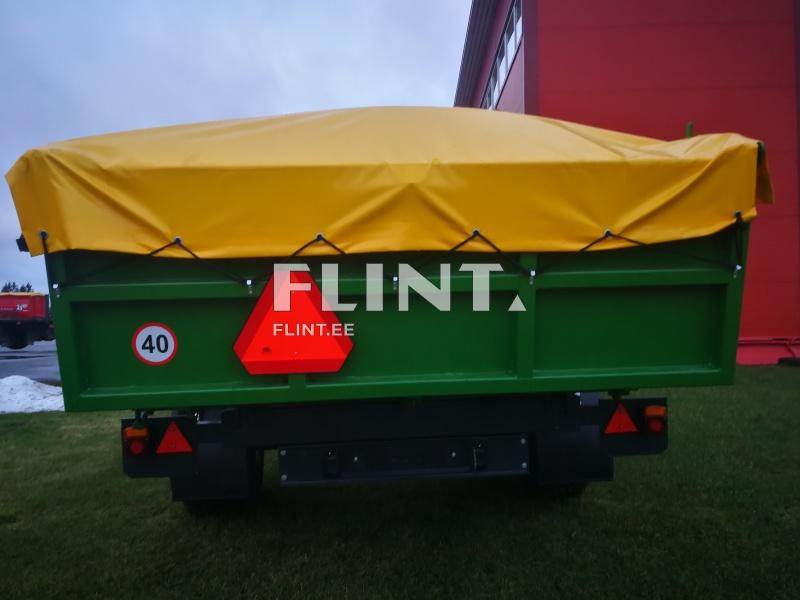

Removable tarpaulin cover on top.
| Carrying (t) | 5 |
| Empty weight (kg) | 1600 |
| Transportation speed (km/h) | 40 |
| Lenght (mm) | 5400 |
| Width (mm) | 2240 |
| Height (mm) | 1650 |
| Box height ( mm) | 800 |

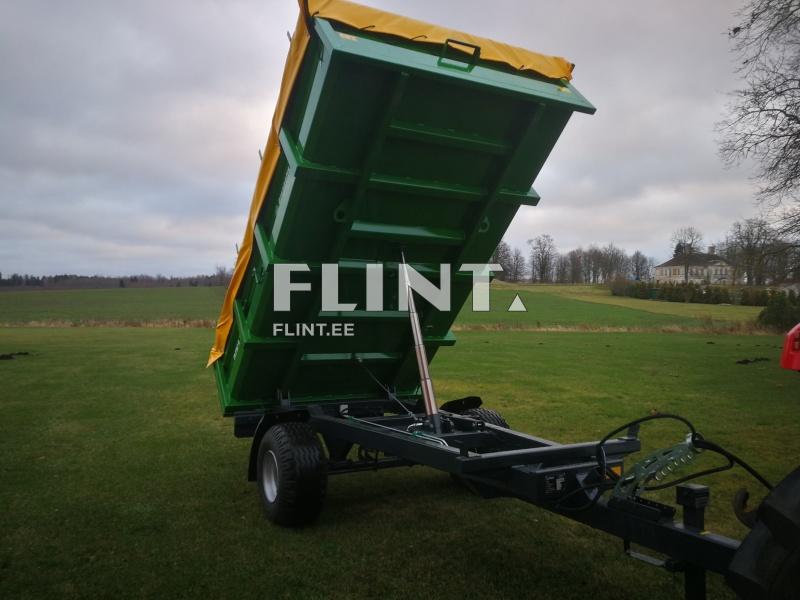

| Tilt angle to the rear (degrees°) | 45 |
| Capacity (m³) | 7 |
| Box thickness: bottom/ sides (mm) | 4/3 |
| Tyers | 400/60-15.5 |
| Break | hydraulick/ air |
| Break system | Pneumatic or hydraulick |
| Power requierment (kW) | 80 |
