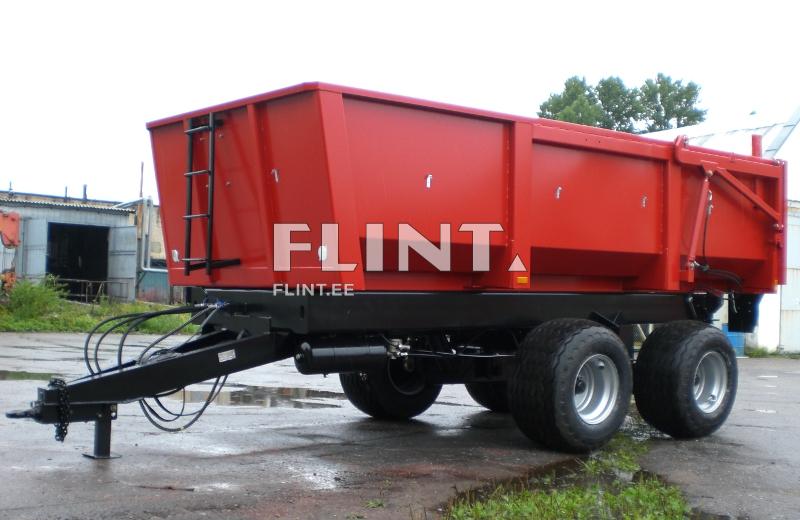

Semitrailer LMR-10
Technical information
The tractor-hauled tip semitrailer LMR-10, lifting capacity is 10 tons.
Load-carrying capacity (ton) | 10 |
Body capacity (m³) | 9.45 |
Body capacity with exstension body sides(m³) | 14 or 20 |
Mass (kg) | 3150 |
Maximum speed (km/h) | 30 |
Overall dimensions | |
Length (mm) | 6125 |
Width (mm) | 2100 |
Height with main body sides (mm) | 1010 |
Height with exstension body sides (mm) | 1510 |
Height with two exstension body sides (mm) | 2010 |
Body lifting angle (deg) | 45º |
Number of cylinders | 1 |
Oil volume needed | 18.6/27 |
Wheel suspension | balancer |
Tyre size | 400/60-15.5 or 500/50-17 |
Track (mm) | 1900 |
Brakes | 300x60 |
Brakes drive | pneumatic or hydraulic |
Drawbar | rigid |
Drawbar support | rigid or jack with adjustable height |
To be attached to tractors with power (kW) | 75-95 |
