Semitrailer LMR-15
Technical information

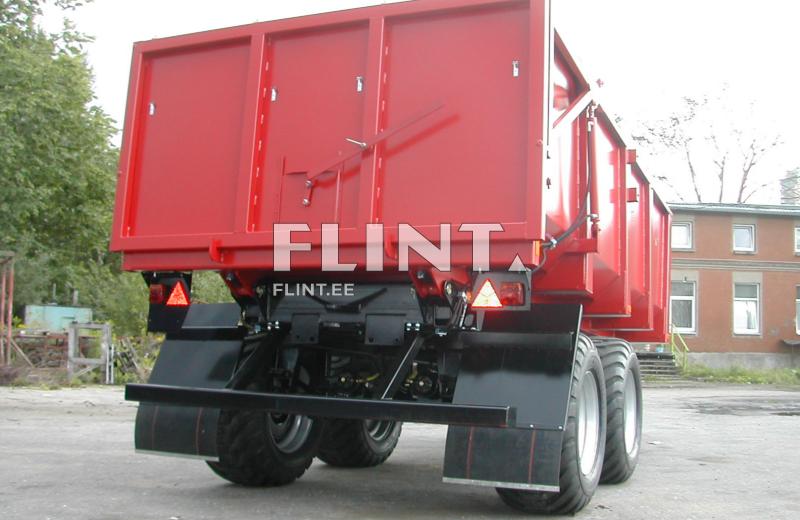

The tractor-hauled tip semitrailer LMR-15, lifting capacity is 15 ton.
| Load-carrying capacity (ton) | 15 |
| Body capacity (m²) | 15 |
| Body capacity with exstension body sides(m³) | 21/25 |
| Weigth (kg) | 4550 |
| Maximum speed (km/h) | 40 |
| Overall dimensions | |
| Length (mm) | 5180 |
| Width (mm) | 2550 |
| Height with main body sides (mm) | 2630 |
| Height with two exstension body sides (mm) | 3615 |
| Inner dimensions of body | |
| Length (mm) | 5180 |
| Width (mm) | 2150/2250 |
| Height with main body sides (mm) | 1206 |
| Height with exstension body sides (mm) | 1690 |
| Height with two exstension body sides (mm) | 2170 |
| Body lifting angle (deg) | 50º |
| Number of cylinders | 1 |
| Oil volume needed | 27 |

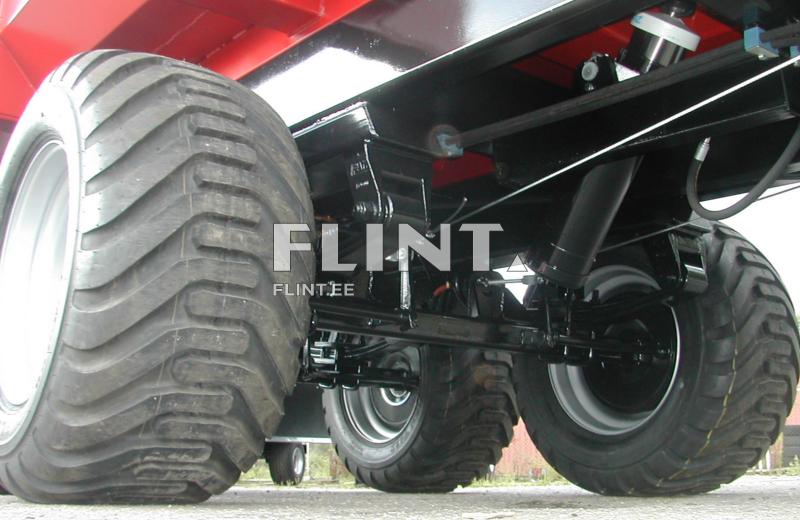

| Wheel suspension | sprung |
| Tyre size | 550/45-22.5 |
| Track (mm) | 1950 |
| Brakes drive | pneumatic or hydraulic |
| Drawbar | adjusted with a rubber absorber |
| Drawbar support | rigid or jack with adjustable height |
| To be attached to tractors with power (kW) | 100-110 |
