AGRICULTURAL MACHINERY
Semitrailer LMR-16
Technical information

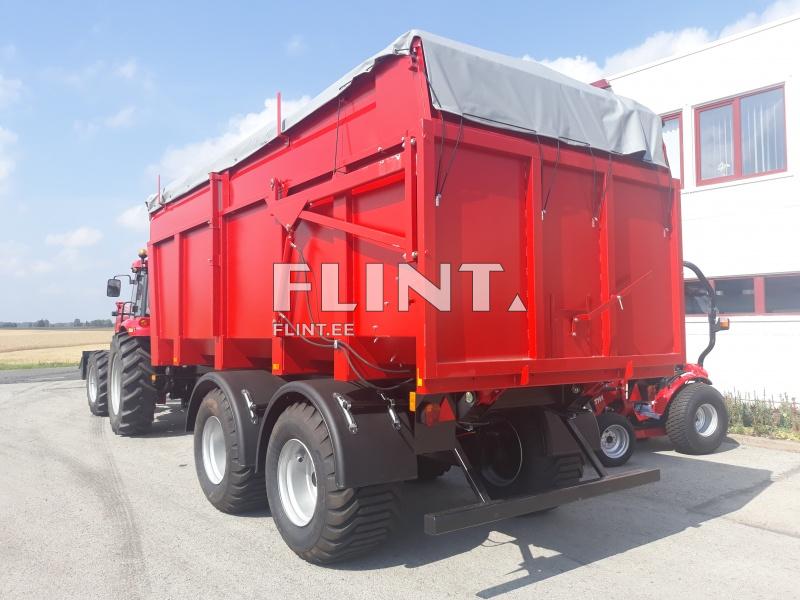

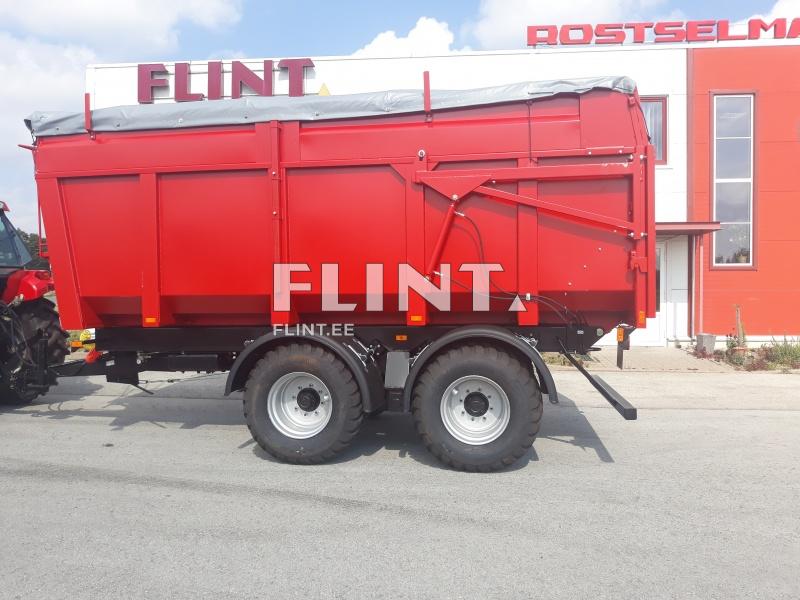

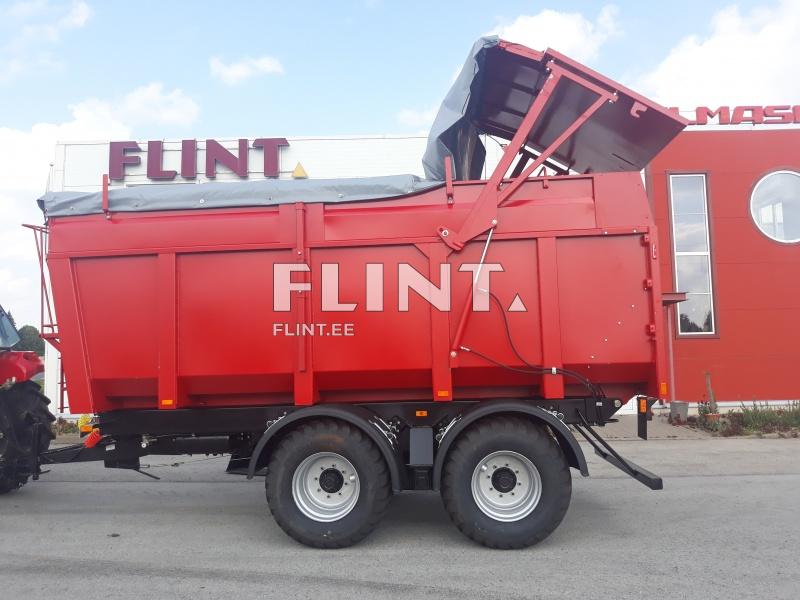

The tractor-hauled tip semitrailer LMR-16, lifting capacity is 16 ton. Having a grain loader this machine becomes an excellent tool for grain transportation.
| Load-carrying capacity (ton) | 16 |
| Body capacity (m³) | 16,5 |
| Body capacity with exstension body sides(m³) | 22,5 or 30 |
| Weigth (kg) | 5000 |
| Maximum speed (km/h) | 30 |
| Overall dimensions | |
| Length (mm) | 7050 |
| Width (mm) | 2550 |
| Height with main body sides (mm) | 2700 |
| Height with exstension body sides (mm) | 3200 |
| Height with two exstension body sides (mm) | 3700 |
| Inner dimensions of body | |
| Length (mm) | 5500 |
| Width (mm) | 2150-2250 |
| Height with main body sides (mm) | 1360 |
| Height with two exstension body sides (mm) | 2360 |
| Body lifting angle (deg) | 50º |
| Number of cylinders | 1 |
| Tyre size | 600/50-22.5 |
| Track (mm) | 1950 |
| Drawbar | sprung |
| Drawbar support | jack with adjustable height |
| To be attached to tractors with power (kW) | 110-130 |
