Semitrailer LMR-24
Technical information

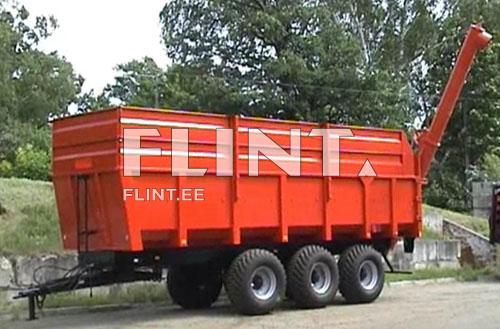

The tractor-hauled tip semitrailer LMR-24, lifting capacity is 24 ton.The semitrailer is mounted on spring bogie tridem. Drawbar equipped with absorption of shocks. Is designed for transportation of various agricultural loads. Machine could be equiped with grain loader.
| Load-carrying capacity (ton) | 24(26) |
| Body capacity (m³) | 21,3 |
| Body capacity with exstension body sides(m³) | 30 or 40 |
| Weigth (kg) | 8000 |
| Maximum speed (km/h) | 40 |
| Overall dimensions | |
| Length (mm) | 9600 |
| Width (mm) | 2500 |
| Height with main body sides (mm) | 2650 |
| Height with exstension body sides (mm) | 3150 |
| Height with two exstension body sides (mm) | 3650 |
| Inner dimensions of body | |
| Length (mm) | 8000 |
| Width (mm) | 2250 |
| Height with main body sides (mm) | 1210 |
| Height with exstension body sides (mm) | 1700 |
| Height with two exstension body sides (mm) | 2200 |
| Body lifting angle (deg) | 50º |
| Number of cylinders | 1 |
| Oil volume needed | 46 |
| Wheel suspension | tridem |
| Tyre size | 600/50-22.5 |
| Track (mm) | 1950 |
| Brakes | 406x120 |
| Brakes drive | hydraulic or pneumatic |
| Drawbar | with absorption of shocks |
| Drawbar support | jack with adjustable height |
| To be attached to tractors with power (kW) | 180-200 |
