The product is a golden universal joint, featuring two connection points. One end has a cap with a metal sleeve, while the other end includes a small ball transition and securing mechanism.
The product is a golden universal joint, featuring two connection points. One end has a cap with a metal sleeve, while the other end includes a small ball transition and securing mechanism.

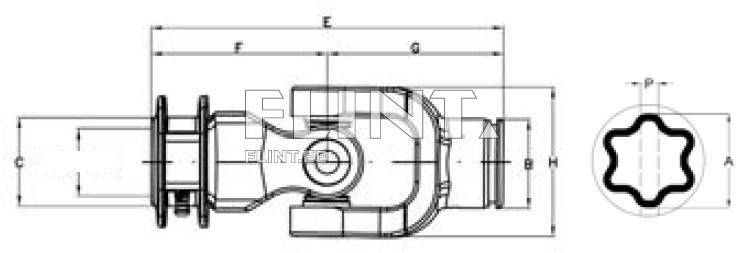

The product is a technical drawing of a lateral joint, featuring a detailed shape and measurements. The main part is rounded with a central hole. One side is marked with various dimensions including C, E, F, G, and H.

Joint z6 x star 61mm, - cross 36x89mm

PRODUCT CODE: 26759
Qty: In Stock
136.40 €
Add to cart

Technical information

Series 3, model 36
Crosskit: 36x89mm
Outer fork: 1 3/8 6 splines
Inner fork: profile pipe star 47x61mm
Power: 540rpm 66kw/90hp; 1180Nm; 10430in.Ib
Power: 1000rpm 102kw/139hp; 980Nm; 86600in.lb
